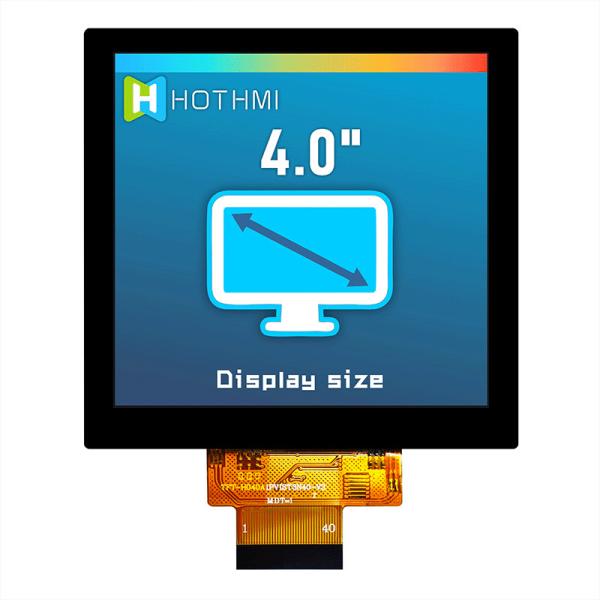

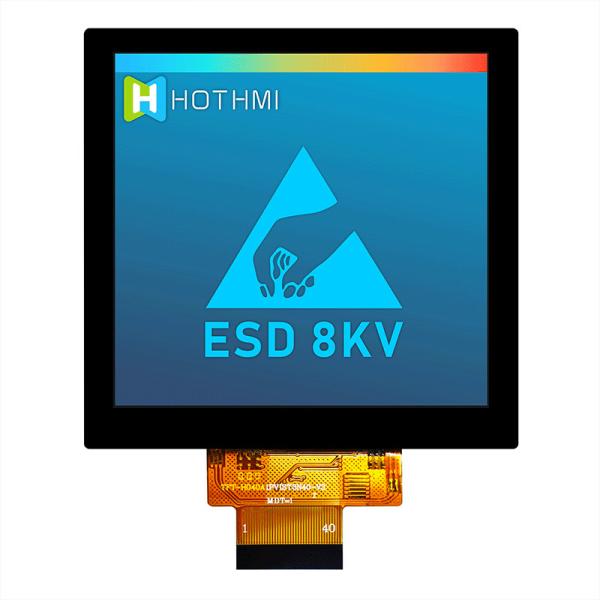

4 Inch 480x480 Dots IPS TFT LCD SPI ST7701S With Glass Cover

Name: 4 Inch 480x480 Dots IPS TFT LCD SPI ST7701S With Glass Cover
Brand: HOTHMI
Price: 1 USD

China 4 Inch 480x480 Dots IPS TFT LCD SPI ST7701S With Glass Cover wholesale

Brand Name : HOTHMI

Model Number : TFT-H040A1PVIST5N40

Place of Origin : dongguan,China

MOQ : 2

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 99999

Delivery Time : 25 days

Field of view window size : 4 inch

Angle : Full Angle

Backlight brightness : 350cd/m2

Display content : 480x480 dots

Driver chip model : ST7701S

Special Instructions : With Glass Cover

Contact Now

4 Inch 480x480 TFT LCD Display SPI ST7701S With Glass Cover/TFT-H040A1PVIST5N40

Product parameters

Product Type - Square TFT
Dimensions (mm) - 84.00(H) * 84.00(V) * 3.06(D)
Display Size(mm) - 4 inch
Effective Dimensions mm - 71.86(H) x 70.18(V)
Product application - 86 boxes, smart panel
Connection method PIN number - 40PIN
Interface - 18 bit RGB+SPI
Working temperature - -20~70℃
Supply voltage - 2.8V

General Feature

Item	Standard Value	Unit
Display Size	4.0	Inch
Number of Pixels	480(H)* 3(RGB)* 480(V)	dots
Active Area	71.86(H)* 70.18(V)	mm
Outline Dimension	84.00(H) * 84.00(V) * 3.06(D) <TFT+Glass>	mm
Viewing Direction	FULL O'clock	-
TFT Interface	SPI+18 bit RGB	-
TFT Driver IC	ST7701S	-
TFT Driver Condition	VCI=2.8V(Typ)	V
Backlight-1	White LED/8 PCS/4 LEDs serial 2 ways parallel	-
Touch Panel	Without TP with Glass	-
Driver IC		-
Driver Condition	VDD=2.8V(Typ)	V
Operation Temperature	-20 ～ 70	℃
Storage Temperature	-30 ～ 80	℃

TFT Pin Description

Pin NO.	Symbol	Description
1	LEDA	LED Anode
2～3	LEDK	LED Cathode
4	GND	Ground
5	VCI	Digital Power
6	RESX	- The external reset input - Initializes the chip with a low input. Be sure to execute a power-on reset after supplying power.
7～8	NC	Not Connect
9	SPI-SDA	Serial data input/output bidirectional pin for SPI
10	SPI-SCL	Serial clock input for SPI interface.
11	SPI-CS	A chip select signal GND: the chip is selected and accessible VCI: the chip is not selected and not accessible
12	DCLK	Pixel clock input pin
13	DEN	Data input enable. Display access is enabled when DE is “L”.
14	VSD	Vertical sync signal.
15	HSD	Horizontal sync signal.
16～21	DB0～5	Blue data bus.
22～27	DG0～5	Green data bus..
28～33	DR0～5	Red data bus.
34	GND	Ground
35	CTP-INT	CTP interrupt read signal.If not used, let this pin open.
36	CTP-SDA	CTP IIC data signal.If not used, let this pin open.
37	CTP-SCL	CTP IIC clock signal.If not used, let this pin open.
38	CTP-RTN	CTP Reset signal.If not used, let this pin open.
39	CTP-VDD	CTP Power supply.If not used, let this pin open.
40	CTP-GND	CTP Ground.If not used, let this pin open.

DESCRIPTION

HOTLCD H040A1 is a 4.0 inch diagonal full color 480x480 TFT display module. This 4.0 inch TFT LCD display is built in with ST7701S IC; it supports SPI+RGB Interface. H040A1 model is having module dimension of 84 x 84 mm and Active area size of 71.86(H) x 70.18(V) mm; it integrated ST7701S controller on module, logic supply voltage range from 2.4V to 2.8V.It is very suitable for display in 86 boxes, smart home panels, etc.

Search keyword: tft 4, tft 4", 4 tft lcd, 4" tft 4, 4 inch tft lcd, tft lcd 4, 4 tft display, 4" tft display, 4 inch tft display, tft display 4, tft display 4", 4 lcd

4 Inch 480x480 Dots IPS TFT LCD SPI ST7701S With Glass Cover

SPEC-H040A1-V3-0.pdf
